Mantall IMP-J series self-propelled aerial work platform has the characteristics of small and compact body size, convenient movement, etc. Providing high quality and low-cost professional aerial work equipment for users is the biggest pursuit of Mantall.
Specification
Standard Features
·345 degree discontinuous rotation
·Jib swing:-60 degree/+75 degree
·Platform swing: left 45 degree/right 45 degree
·Non-marking rubber tires(size 457*178*308)
·2.5 degree tilt alarm
·Lifting ears(4 pieces)
·Hour meter
·Proportional control
·Horn
·Fault diagnosis system
·Automatic brake system
·Explosion-proof of the tubing
·Manual brake release
·Overload sensor
·Platform foot switch
·All motion alarm systems
·Platform weighting system
·Emergency lowering down system
Options Features
·Handheld fault diagnostics
·Air line to the platform
·Platform working light
·AC power to the platform
·Platform swing gate
·Tool bracket
·Mobile alarm
·Fluorescent tubes box
·Top limit protection auto-stop device
·Maintenance-free battery
·Fiberglass platform
New design, Lighter, More flexible

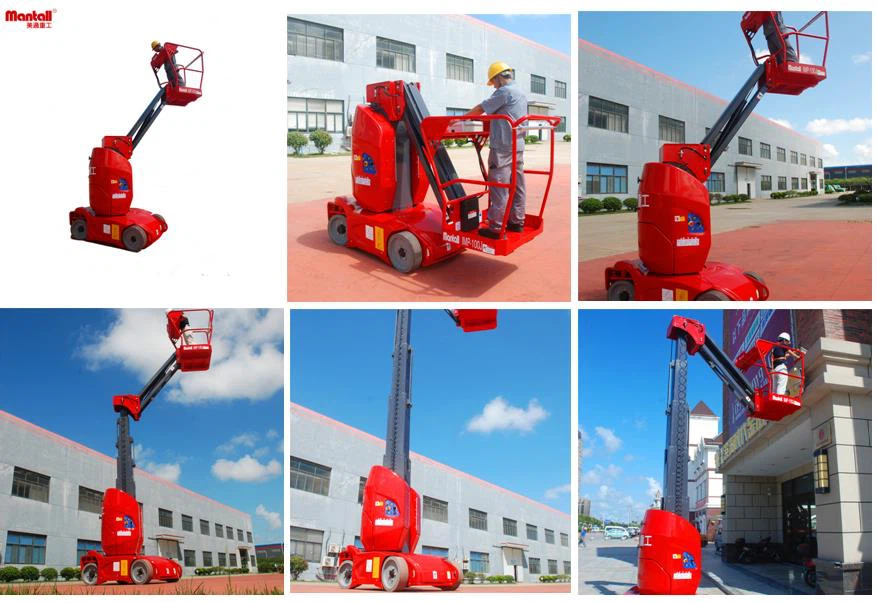

The mantall IMP120J has a maximum working height of 12 meters and a load capacity of 200KG. IMP120J can be used in multiple dimensions in a narrow space. The maximum working radius is 6 meters and can be used under -1meter working conditions. The maximum span height is 5.9 meters. The inner diameter of the rotation is 0.75 meters: the rotary table can be flexibly rotated by 345 degrees, and the rotation of the platform is ±45 platforms. The arm swings up and down: -60 degrees/+75, machine body width is only 1.2 meters, which makes the user’s working range significantly increased. The IMP120J uses AC motor drive to greatly reduce the maintenance cost of the user. With 30% climbing ability, driving 6 kilometers per hour, mobile transportation is very convenient. With a stable control system, the company can operate multiple actions at the same time, effectively improving user productivity.
The IMP120J uses an electric automatic leveling system to make the user feel more stable and safe. The IMP120J’s tilting, overloading and other security protection systems allow users to use the device in a safe situation.
Our superiority:
1. Mantall has been specialized in aerial work platform for more than 10 years.
2. Mantall has a strong research and design team of more than 20 people.
3. Mantall has 200-300 workers and has realized the annual production 3000 units.
We are always listening to customers’ suggestions, and we think only the reasonable service can serve customers well. Our service team supply users 7*24hours uninterrupted “matching service”.
Our team of Customer Service Advisors and On-Site Sales Personnel are here to offer their wealth of experience with a practical approach to ensure you order the right equipment and have received the correct training.
Delivery
1. About 30 days producing period and the arrival time depends on country distance.
