With cutting-edge technology and a strict quality control system in this area, we can guarantee the excellence and outstanding quality of our Mobile Hydraulic Scissor Lift, 200kg Self-propelled Sleeve Type Manlift, Self-propelled Electric Articulated Boom Lift. We insist on scientific development and independent innovation as our main tasks. Our company always adheres to technological innovation, continuously strengthens internal management, optimizes product structure, and improves product quality. During the production and sales process, we maintain close cooperation with customers at any time to meet customer needs and ensure timely delivery.
Introduction
Place of Origin | Jiangsu, China |
Brand Name | Mantall |
Model Number | XEM60MINI |
Weight | 565kg |
Certification | CE ISO SGS |
Overall Dimensions | 1.15*0.76*1.94m |
Rated Loading Capacity | 240kg |
Lift Mechanism | Scissor Lift |
Lift Drive / Actuation | Hand |
Table Size | 1.15*0.76*1.1m |
Max. Lifting Height | 6m |
Color | Red |
After-sales Service Provided | No overseas service provided |
Warranty | 1 Year |
Our Company
Mantall committed to scissor lift, articulated boom lift, telescopic boom lift and aluminum man lift production. Our machine has certification of ISO; US standard: ANSI SIA92.6 CAS; European standard: EN280; Australia standard: AS1418.10. Our product quality are promised by Product Global Liability Insurance from China Ping An insurance Co., Ltd.

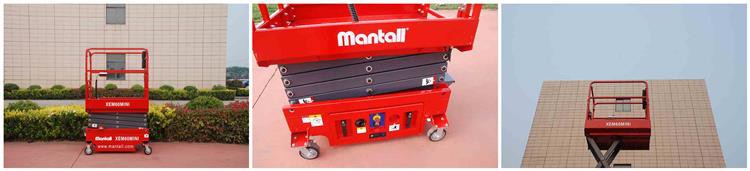

Detailed Images
Mobile Mini Scissor Lift | |
Model | XEM60MINI |
Max Working height m | 6 |
Max platform height m | 4 |
Lifting capacity KG | 240 |
Weight Kg | 565 |
Platform Size m | 1.15*0.76*1.1 |
Skirting board height m | 0.15 |
Stowed size: L*W m | 1.94 |
Stowed height: m | 2 |
Hydraulic tank capacity L | 1.07 |
Ground clearance m | 0.06 |
Vertical tilt ° | 2 |
Lateral tilt ° | 1 |
Load person max | 2 |
Raised time/lowering time s | 35/18 |
Power source | 12V/100AH |
Tires Size mm | Non-marking wheels 150mm |
Our service
(1) Our service team supply users 7*24 hours uninterrupted "matching service".
(2) Mantall build unique file for every customer and each equipment
(3) Mantall always listens to customers' suggestions, and takes provide high-quailty, low-cost products for customers as its responsibility.
Packing & Delivery
Careful loading of Container
After strict quality inspection and careful packaging of products, our forklift truck master loaded the machine into the loading place designated by our factory, and the packer driver parked the car over there in advance, and our colleagues loaded the machine into containers through special lifting platforms, then fixed the machine, completing the whole packaging and shipment process.
Customer first
Mantall's prior goal is to help customers achieving success by solving problems, increasing work efficiency and lowering management cost.
Mantall 360° Service
Focus, Dedication,Sincerity,Care,Earnest
We are always listening to customers' suggestions, and we think only the reasonable service can serve customers well. Our service team supply users 7*24 hours uninterrupted "matching service".
Mantall product following the standards
ANSI/SIA A92.5
ASIN/SIA A92.6
CAS CAN3-B354.2-M82
AS1418.10 EN280
Besides providing high-quality Mobile Small Platform Scissor Lift for Workshop Crane for customers in different industries, we also provide customers with technical support, professional solutions and other personal instant services. With persistent belief and unrepentant pursuit, we have created a solid foundation for the company's career development. For a long time, we have been adhering to the concept of 'integrity', 'pragmatism' and 'team', constantly improving service efficiency and product quality, and have achieved long-term progress and development.
