Name: China Mantall Mini Electric Scissor Lift Platform Aerial Work Platform Manudacturer Manufacturers - Pricelist & Quotation - Mantall
Brand: Mantall
SKU: 107163866

Mantall Mini Electric Scissor Lift Platform Aerial Work Platform Manudacturer

XE60MINIED PLUS offers the max working height of 6.4 meters, the lifting capacity can reach to 240kg.
The compact small size allows the machine enter into the elevator easily, which is hot sale and popular
.

Mantall Heavy Industry Co., Ltd. is one of the leading manufacturers and suppliers of mantall mini electric scissor lift platform aerial work platform manudacturer in China. We warmly welcome you to buy discount mantall mini electric scissor lift platform aerial work platform manudacturer made in China here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.

Product Description

XE60MINI/ED PLUS

Max working height of this machine is 6.4m ,the platform can outreach 0.55m and the lift capacity is 240kg. It can be driven like a car and will help you work easier. This kind of machine is equipped with DC24V battery and totally automatic.

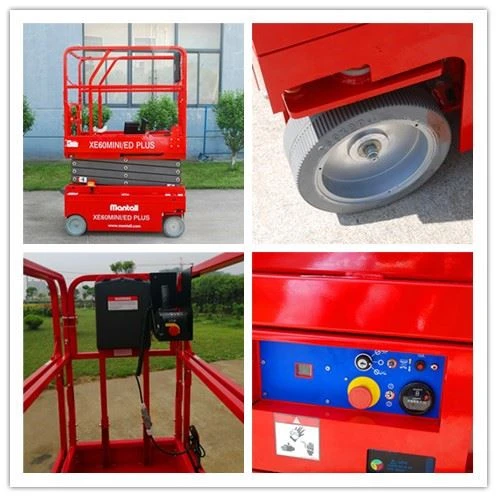

Detailed Images

XE60MINIED PLUSPIC

SELF-PROPELLED MINI SCISSOR LIFT
Model	XE60MINI/ED PLUS
Working height max(m)	6.4
Platform height max(m)	4.4
Outreach(m)	0.55
Lifting capacity(kg)	240
Lifting capacity(kg)(Extended platform)	100
Weight(kg)	810
Platform size(L×W×H)m	1.28X0.76X1.1
The length of platform extended(m)	1.8
Skirting board height(m)	0.17
Stowed size(L×W)m	1.49X0.76
Stowed height(m)	2.03
Height of the machine with platform folded(m)	1.59
Hydraulic tank capacity(L)	2
Gradeability	25%
Wheelbase(m)	1.05
Ground clearance(m)	0.06
Inside rotation radius(m)	0.35
Load number max	2
Raised time/Lowering time(s)	23/19
Traction speed(km/h)	3
Safe speed(km/h)	0.8
Vertical tilt°	3
Lateral tilt°	2
Power source	24V
Tire size(mm)	Solid Non-marking tires 230

Certifications

Our Service

Sale-service

1.Professional and patient consulting service to help you find the suitable solution.
2.Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.

3. Powerful control of the machine production schedule and quality
4. Package for your confirmation before shipment.

After sale-service

1.We create a special file and maintenance schedule for each customer.
2.According to fault code showed at machine , we express the accessory immediately
3.Dealers all over the world who can provide customers with paid on-site technical support.

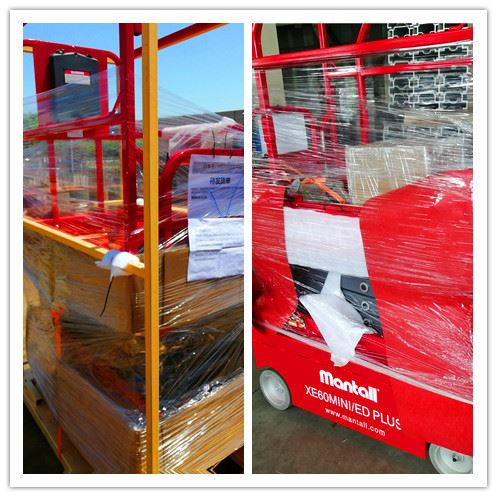

Packing & Delivery

XE60MINIED PACK

Package:

For 1 unit, we usually pack it by steel tray and the inside package material changed from thin blanket

to cardboard.

For more quantities, they will be packed by container, one 20ft container can load 12 units. One 40ft container can load 26 units.

The stowed size of XE60MINIED PLUS is: 1.49*0.76*2.03m

If you want more detailed information, plz contact me.
