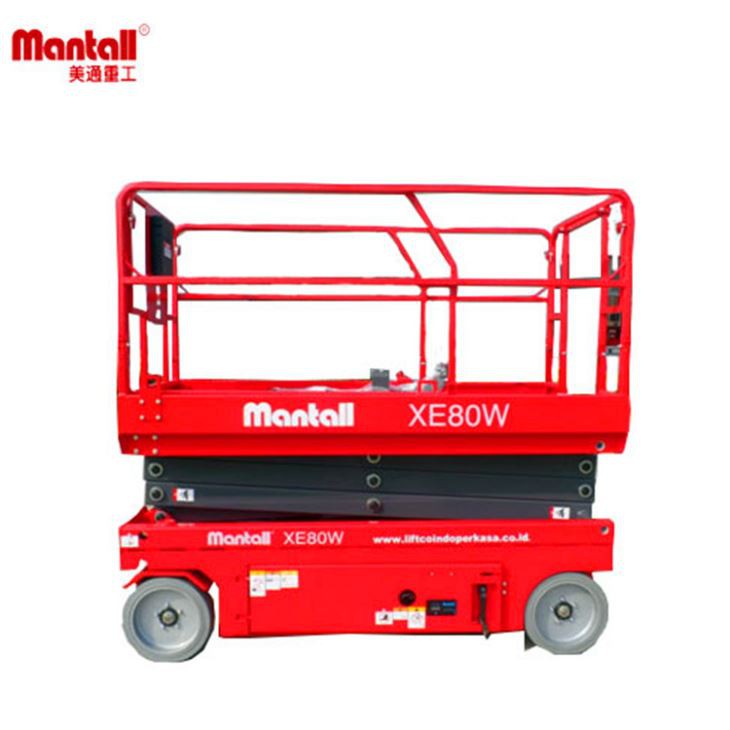

XE80W 8m Electric Self-Propelled Scissor Lift

Mantall Heavy Industry Co., Ltd. is one of the leading manufacturers and suppliers of XE80W 8m Electric Self-Propelled Scissor Lift in China. We warmly welcome you to buy discount XE80W 8m Electric Self-Propelled Scissor Lift made in China here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.

Built for Jobs That Need More Than Personnel Access

Some aerial jobs only require an operator to reach a light fixture or inspection point. Others involve two technicians, power tools, replacement parts and installation materials working together at height.

XE80W is designed for the second type of job.

Its rated platform capacity reaches 550 kg, giving industrial users significantly more load allowance than compact light-duty scissor lifts. The machine therefore fits projects where the platform is used as an actual working area rather than simply as a way to lift one person.

550kg Changes What You Can Take Up

The main reason to select XE80W is its 550 kg rated platform capacity.

For maintenance and installation teams, higher capacity can provide more flexibility when carrying items such as:

• Electrical tools
• Mechanical tools
• Replacement components
• Installation hardware
• Measuring equipment
• Suitable work materials

The platform remains subject to the rated load limit, but the higher capacity gives users more room to plan a complete task at height instead of treating the platform only as personnel access.

More Room to Work

XE80W uses a platform measuring approximately 2.25 m × 1.14 m.

The deck can extend to approximately 3.25 m in total length and provides up to 1 m outreach.

This is useful for jobs where technicians need to work along a ceiling, production line or building service area without moving the chassis after every small change in position.

Typical examples include cable-tray work, overhead pipe maintenance, lighting installation and mechanical servicing.

Why XE80W Is Different from XE65N

XE65N is designed around narrow access.

Its 0.77 m machine width is an advantage when the equipment must pass through restricted indoor areas.

XE80W solves a different problem.

Its overall width is 1.15 m, but in return it provides:

• 550 kg rated platform capacity
• 2.25 × 1.14 m working deck
• 120 kg extension capacity
• 1 m outreach
• Two-person indoor and specified outdoor operation

If the customer's first question is "Will the machine fit through a very narrow access point?", XE65N may be the better choice.

If the customer's first question is "Can two technicians take more tools and equipment up with them?", XE80W deserves stronger consideration.

For Industrial Installation Teams

Factory installation work often requires more than a person standing on a platform.

A typical job may involve two workers handling tools, fasteners, electrical components or mechanical parts at the same time.

XE80W provides the deck space and rated capacity needed for this type of working method.

This makes the machine particularly relevant to:

• Factory equipment installation
• Production-line servicing
• Warehouse lighting projects
• Electrical installation
• Ventilation and duct maintenance
• Building facility upgrades
• Mechanical component replacement

Outdoor Capability Adds Flexibility

The current XE80W specification lists two-person loading for both indoor and specified outdoor use.

Maximum specified wind speed is 12.5 m/s.

For contractors and maintenance teams working across different areas of the same project, this provides a wider operating range than equipment intended only for zero-wind indoor conditions.

All outdoor use must remain within the operating manual, rated limits and local safety requirements.

A Simple Selection Rule

Choose XE80W when:

• 8 m working height meets the job requirement
• 550 kg platform capacity is useful
• Two-person work is common
• More deck space is required
• Tools or suitable work materials must be carried
• 1.15 m machine width is acceptable

Choose a narrower compact model when access width is more important than platform capacity.

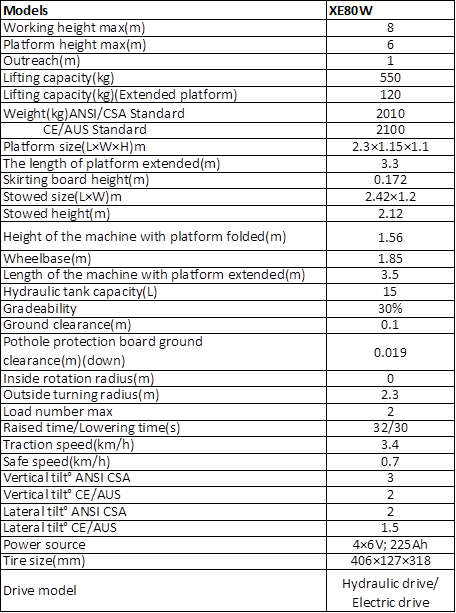

XE80W Key Figures

• Maximum working height: 8 m
• Maximum platform height: 6 m
• Rated platform capacity: 550 kg
• Extension capacity: 120 kg
• Platform size: 2.25 × 1.14 m
• Extended platform length: 3.25 m
• Maximum outreach: 1 m
• Overall machine width: 1.15 m
• Indoor / outdoor persons: 2 / 2
• Maximum wind speed: 12.5 m/s

FAQ

Q: What type of work is XE80W best suited for?

A: XE80W is particularly suited to industrial maintenance and installation jobs where two-person work, tools and additional platform load allowance are important.

Q: Why is the platform capacity much higher than on compact models?

A: XE80W is designed around working capacity and deck space rather than minimum machine width. Its 550 kg rating gives maintenance and installation teams more flexibility within the permitted load limit.

Q: Should I choose XE80W or XE65N?

A: Choose XE65N when narrow access is the priority. Choose XE80W when the job requires considerably more platform capacity and a larger working deck.
