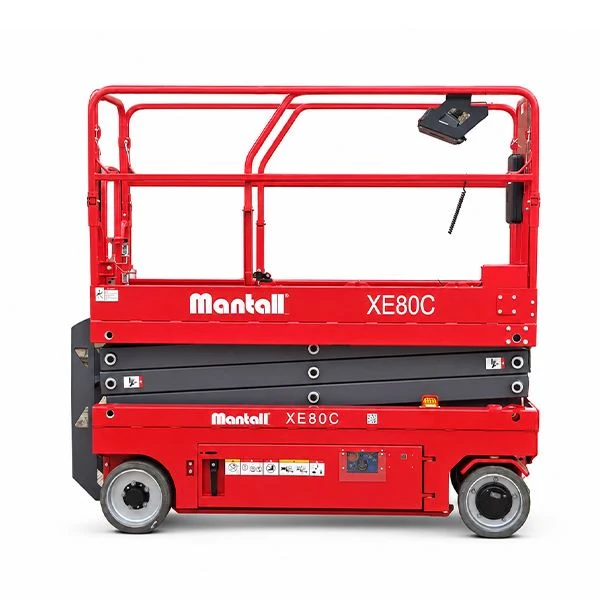

XE80C 8m Narrow Electric Scissor Lift 350kg Capacity

Mantall Heavy Industry Co., Ltd. is one of the leading manufacturers and suppliers of XE80C 8m Narrow Electric Scissor Lift 350kg Capacity in China. We warmly welcome you to buy discount XE80C 8m Narrow Electric Scissor Lift 350kg Capacity made in China here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.

Getting the Machine to the Work Area Matters

Choosing an aerial work platform is not only about working height.

In many factories, warehouses and commercial buildings, the machine must first pass through entrances, corridors, structural openings and equipment areas before it can reach the actual maintenance point.

XE80C is designed with this access process in mind.

Its overall width is approximately 0.81 m, overall length is 2.48 m, and the machine has a zero inside turning radius.

These dimensions make XE80C particularly relevant to facilities where machine access and positioning must be checked carefully before aerial work begins.

Plan the Access Route before the Job Starts

Before using XE80C, the customer should check the complete route from the unloading point to the final work position.

Important dimensions include:

Machine width: 0.81 m

Machine length: 2.48 m

Folded height: 1.69 m

Outside turning radius: 2.18 m

This information can be compared with doorway width, passage height, turning areas and available floor space.

For existing facilities, checking the route in advance can avoid situations where a machine has sufficient working height but cannot physically reach the required area.

Zero Inside Turning Radius for Facility Positioning

Once inside the building, the machine may need to move around columns, production equipment, shelving or building services.

XE80C uses a zero inside turning radius.

This allows the chassis to pivot efficiently when changing direction and helps with positioning in areas where straight-line travel space is limited.

The outside turning radius is approximately 2.18 m.

This steering characteristic is particularly useful for facility maintenance jobs that involve several work points in the same building.

A Long Platform on a Narrower Chassis

The standard platform measures approximately 2.25 m long and 0.8 m wide.

This gives technicians useful working space without requiring the machine body to become excessively wide.

The platform can extend to approximately 3.25 m in total length.

Maximum outreach is 1 m.

For ceiling inspection, lighting work or building-service maintenance, the extension can help the operator approach nearby work points before moving the entire chassis.

350kg Rated Working Load

XE80C provides a rated main platform capacity of 350 kg.

The extended section is rated for 120 kg.

Rather than positioning XE80C as a heavy-material scissor lift, the 350 kg capacity is useful for normal maintenance teams carrying personnel, tools and suitable servicing equipment within the rated limit.

Maximum personnel rating:

Indoor: 2 persons

Outdoor: 1 person

Indoor Work with Limited Outdoor Capability

XE80C is not restricted to zero-wind indoor applications.

The current specification provides:

Indoor rating: 2 persons

Outdoor rating: 1 person

Maximum wind speed: 12.5 m/s

This can be useful for facilities where most work takes place indoors but occasional suitable outdoor inspection or maintenance is also required.

Outdoor operation must remain within the limits specified in the machine manual.

Three Typical Access Problems XE80C Can Address

Problem 1: The maintenance point is high enough for an 8 m machine, but the entrance route is restricted.

XE80C combines 8 m working height with a 0.81 m overall width.

Problem 2: The machine must turn around structural columns or equipment after entering the facility.

The zero inside turning radius helps improve positioning.

Problem 3: Several nearby ceiling service points must be reached.

The platform extends to approximately 3.25 m and provides up to 1 m outreach, reducing unnecessary chassis movement.

Typical Facility Tasks

• Warehouse aisle lighting inspection
• Factory ceiling electrical maintenance
• Commercial building service work
• Fire protection system inspection
• Production-area facility servicing
• Indoor signage installation
• Ventilation system inspection
• Suitable outdoor building maintenance

Route Planning Checklist

Before ordering XE80C, confirm:

• Doorway width
• Doorway height
• Corridor width
• Available turning space
• Floor loading conditions
• Required working height
• Required platform load
• Indoor or outdoor operating conditions
• Distance between repeated service points

XE80C Key Operating Data

• Maximum working height: 8 m
• Maximum platform height: 6 m
• Overall width: 0.81 m
• Overall length: 2.48 m
• Folded height: 1.69 m
• Inside turning radius: 0 m
• Outside turning radius: 2.18 m
• Platform capacity: 350 kg
• Extension capacity: 120 kg
• Maximum outreach: 1 m

FAQ

Q: Why is access-route planning important for XE80C?

A: A scissor lift may have sufficient working height but still be unsuitable if it cannot pass through the building access route. Customers should compare the 0.81 m width, 1.69 m folded height and turning space with actual site dimensions.

Q: What is the turning radius of XE80C?

A: The machine has a zero inside turning radius and an outside turning radius of approximately 2.18 m.

Q: Can XE80C work outdoors?

A: The current specification allows one-person outdoor operation with a maximum specified wind speed of 12.5 m/s, subject to the operating manual and site conditions.
