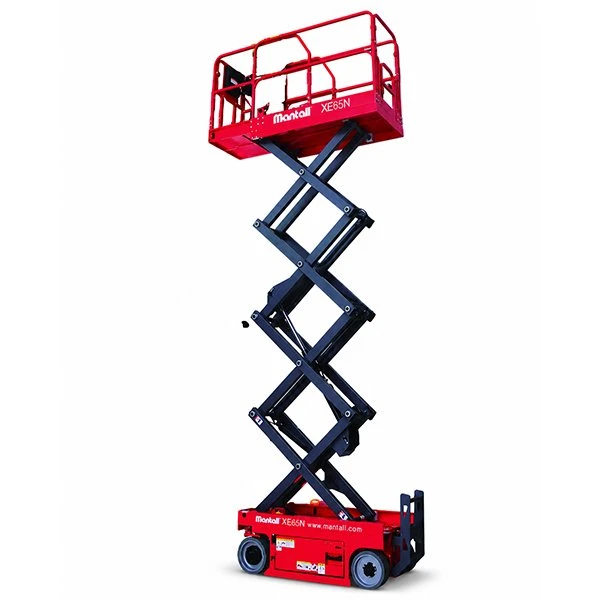

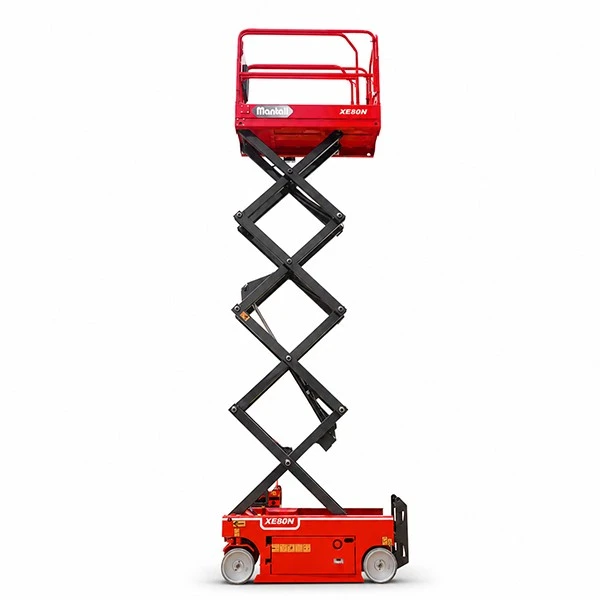

Mantall Heavy Industry Co., Ltd. is one of the leading manufacturers and suppliers of xe65 / xe80n compact self-propelled electric scissor lift in China. We warmly welcome you to buy discount xe65 / xe80n compact self-propelled electric scissor lift made in China here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.
Product Introduction
Flexible and safe operation with ultra-stable design. Compact body, wide working area, and easy maintenance. Features dual drive, emergency lowering system, anti-collision protection, foldable platform, and maintenance-free battery. Equipped with AC/air sockets, platform lighting, GPS, and top limit auto-stop for reliable performance in various working environments.
| Model | XE65N | XE80N |
| Dimension | ||
| A Max. Platform Height | 4.5m | 5.8m |
| Max. Working Height | 6.5m | 7.8m |
| B Max. Outreach | 0.9m | 0.9m |
| C Overall Length | 1.83m | 1.83m |
| D Overall Width | 0.77m | 0.77m |
| Overall Height (guardrails folded) | 1.76m | 1.86m |
| E Overall Height (guardrails unfolded) | 2.08m | 2.18m |
| F Wheelbase | 1.36m | 1.36m |
| Ground Clearance | 0.08m | 0.08m |
| Pothole protection board ground Clearance(down) | 0.02m | 0.02m |
| Platform Size(L×W×H) | 1.64m*0.75m*1.1m | 1.64m*0.75m*1.1m |
| Length - Platform Extended | 2.55m | 2.55m |
| Skirting Board Height | 0.15m | 0.15m |
| Performance | ||
| Lifting Capacity | 270kg | 230kg |
| Lifting Capacity (extended platform) | 115kg | 115kg |
| Max. Load number (indoor) | 2 pers | 2 pers |
| Drive Speed(Stowed) | 3.8km/h | 3.8km/h |
| Drive Speed(Raised) | 0.7km/h | 0.7km/h |
| Rising Time (empty load) | 11s | 14s |
| Lowering Time(empty load) | 8.5s | 11s |
| Gradeability (2WD) | 30% | 25% |
| Tilt Sensor - Front to Back/ Side to Side | 3°/1.5° | 3°/1.5° |
| Turing Radius (inside/ outside) | 0.8m/1.56m | 0.8m/1.56m |
| Max. Lateral Force (indoor) | 400N | 400N |
| Max. Wind Speed | 0 | 0 |
| Tire Specification/ Type | 323mm×100mm/solid tire | 323mm×100mm/solid tire |
| Power | ||
| Drive Model | Hydraulic/ Electric Drive, 2WD×2WS | Hydraulic/ Electric Drive, 2WD×2WS |
| Power Unit Motor (voltage/power) | 24V/3.3kW | 24V/3.3kW |
| Hydraulic Tank Capacity | 8L | 8L |
| Hydraulic system pressure | 21Mpa | 21Mpa |
| Battery specifications (lead-acid battery/lithium battery) | 235Ah | 235Ah |
| System Voltage | 24V | 24V |
| Control Voltage | 24V | 24V |
| Charger (Input Voltage/Output Current) | 90-264V/36A | 90-264V/36A |
| Weight | ||
| Weight | 1470kg | 1542kg |
| Standard | GB/CE | GB/CE |
